Flat Wire Conveyor Belts - Clinched Edge & Weld Edge

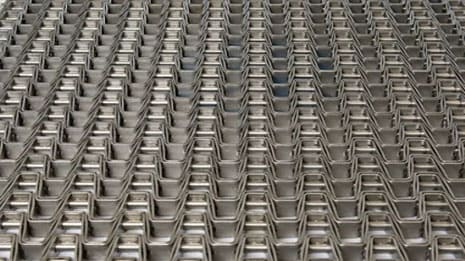

Flat wire conveyor belts, also known as Ss Honeycomb Belt, are constructed of cross rods and flat metal strips to provide an open mesh with a flat surface, endless splicing, excellent air circulation, fluid drainage, and ease of cleaning. As trusted Manufacturers, Suppliers, Provider, Exporters of Ss Honeycomb Belt in Mumbai, Navi Mumbai, Thane, India, we deliver high-quality belts, including double-strip versions for heavy-duty applications, ensuring durability and easy maintenance by replacing only damaged sections.
Two styles of belt edges:
The selvages the flat wire conveyor belts are available in clinched edge and welded edge as shown in the picture:
Features:
- Large open area for excellent air circulation
- Optional side plates, reinforcing links and flights
- Strong edge avoids snagging or catching even where there are conveyor protrusions
- Low maintenance
- Suitable for friction or sprocket drive
- Anti-slipping and lasts for years if used well
- Durable structure prevents belt from deforming under heavy loads
Application:
- Food baking, cooling and freezing, etc.
- Chemical industry.
- Agricultural farming and harvesting.
- Being used in discharging tower at ports.
- Sorting, sieving and waste handling system.
- Washing, drying, painting and transferring.
- Acting as matting and drag mats.
Specification:
The description of flat wire conveyor belts is followed by its load
capacity. Normally, there are standard duty belts and heavy duty belts for our customer to choose from according to their different needs. The standard duty type is sufficient for most applications and heavy duty type is ideal for heavy product conveying and some tougher conditions.
As your request, radius flat wire conveyor belts can also be supplied with right and left turn up to 180 degrees and reinforcing links to strengthen the outside edges of the belt. Its turning ability makes the belt capable to operate in limited space without obstacles and troublesome transfers.
Details:
- Material: C-1045, C1050 high carbon steel, low carbon galvanized steel, stainless steel, 304, 316, etc.
- Open size: 1" x 1", 1/2" x 1", 1/2" x 1/2", etc.
- Belt width: 50mm to 3500mm.
- Belt speed: from less than 1 m/min to 25 m/min.
- Temperature range: -30°C to 700°C.
- Accessories: flight clips, lane dividers, edge guards or pin up attachments, etc.
Our Ss Honeycomb Belt is designed for durability and efficient material handling in heavy-duty applications. As leading Manufacturers, Suppliers, Provider, Exporters in Mumbai, Navi Mumbai, Thane, India, we provide high-quality belts that ensure smooth operation, easy maintenance, and long-lasting performance across industries such as food processing, chemical, and manufacturing.
