Radius conveyor belt also known balanced wave belt because it composed of balanced weaved spiral mesh, straight cross rods and chain links on both sides. They are suitable for a wide range of applications, constructions and process conditions throughout the world. Radius belts offer a smooth continuous product flow running dependably year after year without damaging fragile and delicate products.

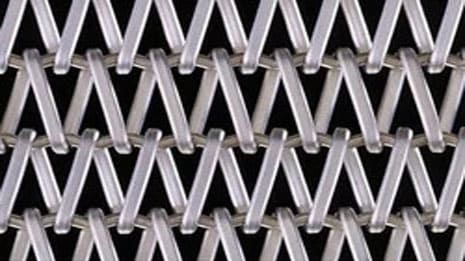

Two different wires - round & flat

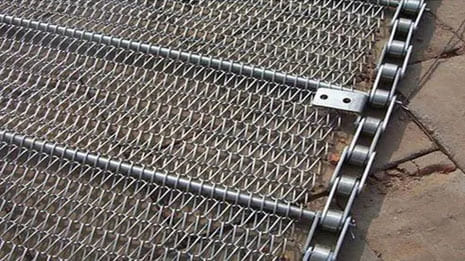

Ladder conveyor belts are available in straight types and curved types with a fixed inside radius as shown in the picture:
Features:
- Stable design for smoothly, dependably and gentle movements.
- Money saving by securing the quality of products and reducing waste.
- Close-structure and ideal for high tensile load.
- Suitable for radius system, spiral, curved or straight conveyors.
- Wide temperature range from -196°C to +275°C.
- Complying with FDA standards.
Applications:
- Food cryogenic cooling and freezing.
- Vegetable blanching.
- Dough proofing.
- Drying installations.
- Product lifting conveyors.
- Baking or pasteurizing systems.
- Conveyor machines.
- Ovens, froster, annealing furnaces.
- Frying, refrigeration and cleaning facilities.

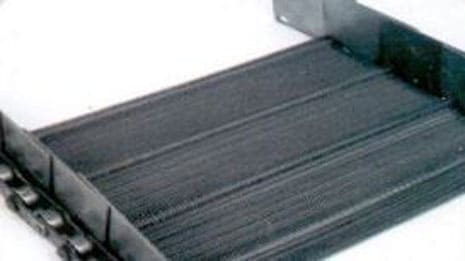

Four main types of edges:
U-shaped link ends:
Specification Table:
| Style | Pitch | Radius/ belt width | Rod diameter | Wire diameter | U-shaped chain link height | Width of U-shaped chain link |
|---|---|---|---|---|---|---|

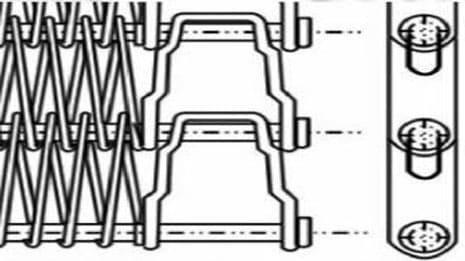

| Normal chain link type | 3/4" | 2.2 | 5mm | 2mm | 11mm | 28mm |
| Normal chain link type | 1" | 1.7 to 2.2 | 5mm | 2mm | 11mm | 29mm |

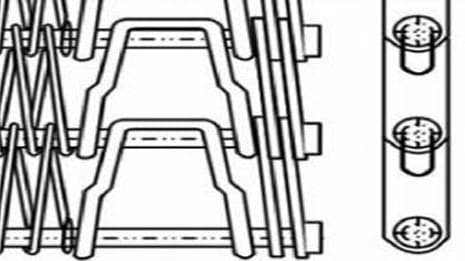

| Heavy duty chain link type | 1" | 2.2 | 5mm | 3mm | 11mm | 36mm |

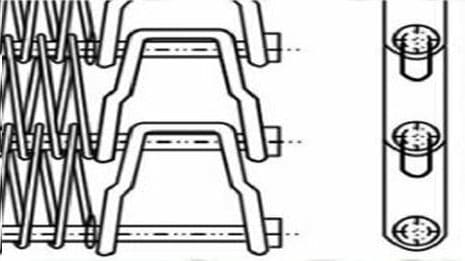

| Heavy duty chain link with double reinforcing plate links | 1" | 1.7 to 2.2 | 5mm | 3mm | 11mm | 41mm |

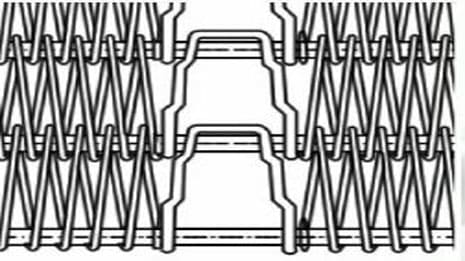

| Radius conveyor belts with middle links | 3/4" | 1.1 (Inner) | 5mm | 2 or 3mm | 11mm | 28mm |
