Rod network belts, also known as enrober conveyor belts or flat flex conveyor belts. feature specially designed "7-bend" joints in the wire mesh. They are perfect for transporting light and medium weight products in food processing industries.
Features:
- High open structure: Up to 86% open area for efficient cooling, drying, and heating.
- Positive drive without slipping: Sprocket-driven design eliminates the need for complex tracking mechanisms.
- Stable conveying: Small diameter end and drive rolls ensure stable transport of delicate products.
- Wide range of sizes: Multiple sizes and openness options provide superb strength and minimal product contact.
- Lower belt mass: Reduced weight compared to balanced weave belts for lower power consumption and faster processing.
- Easy to clean and maintain: Open structure with no hidden crevices enables cost-effective cleaning and maintenance.
Details:
- Materials: Quality spring steel AISI 1060; stainless steel wire 302, K2930, or custom options.
- Open area: 67.5% to 86%.
- Wire diameter: 0.035" to 0.11" as per request.
- Pitch: 1/8" to 3/4" or custom options.
- Belt width: 3 to 14' or custom width as per request.
Belt edge:

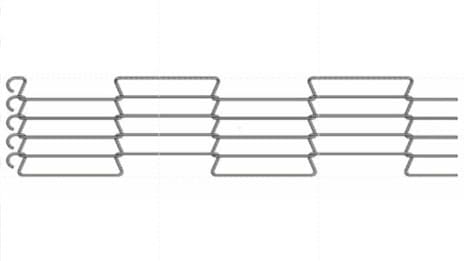

Rod network conveyor belts can be manufactured with three types of bending end:
single loop edge, double loop edge and C-shaped loop edge as follows:
