Eye Link Conveyor Belt are specially designed for applications requiring an extremely rugged structure and long service life. Also known as eye flex belts, they feature larger open areas and are widely used in chemical, steel, and food industries for processes such as drying, washing, baking, pasteurizing, frying, freezing, and cooling. As trusted Manufacturers, Suppliers, Provider, Exporters of Eye Link Conveyor Belt in Mumbai, Navi Mumbai, Thane, India, we deliver durable and high-quality belts suitable for demanding industrial applications.
Features:
- High strength and excellent carrying ability
- Open flat surface for superb air circulation and fluid drainage
- High reliability, durability with long service life even being used in 24/7 product line
- A wide range of materials and sophisticated designs for virtually every application
- Offer continuous product support minimizing product marking
- Smooth and single level surface without product entrapment
- Excellent resistance against shock and lateral forces
Details:
- Materials: Galvanized steel, carbon steel, stainless steel, and other custom materials.
- Belt Gap: 2mm to 50mm.
- Open Area: 20% to 90%.
- Wire Link Diameter: 1.6mm for light/fine structures, up to 4mm for heavy load applications.
- Width: 50mm to 7,000mm.
- Length: Any desired length.
Four styles of eye-links:

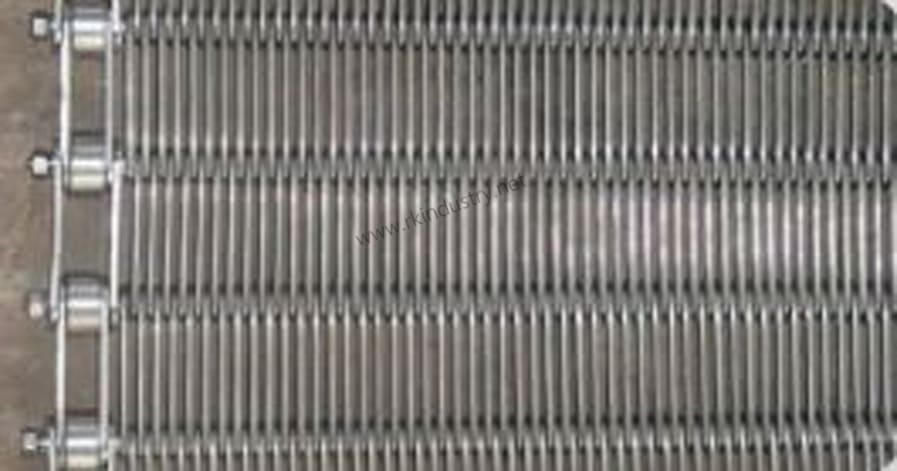

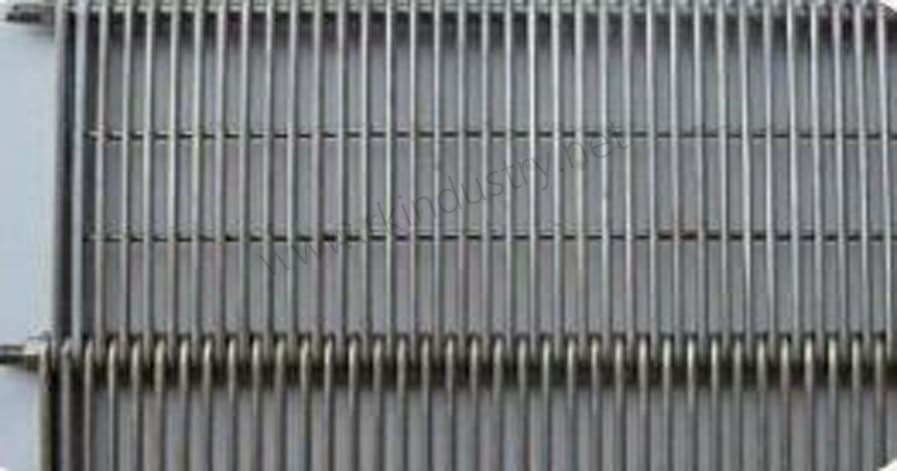

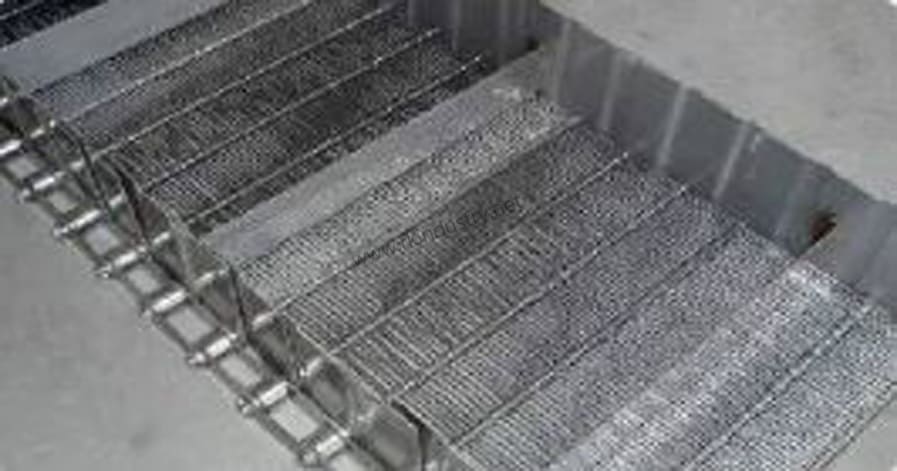

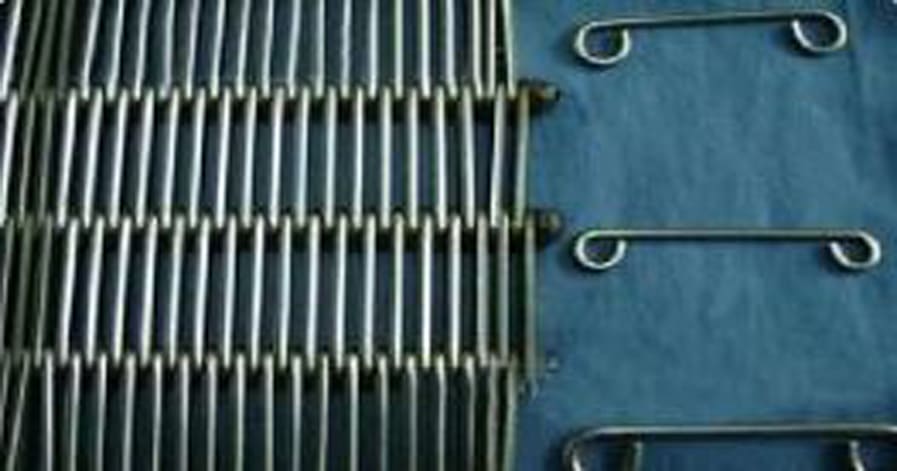

Eye flex conveyor belts can be manufactured with various styles of eye-links: eye flex belt without spacer, eye flex belt with under welded spacing, eye flex belt with rings as spacers and eye flex belt with springs as spacers as shown in the following pictures:
