Ladder Conveyor Belt for
Process & Loads

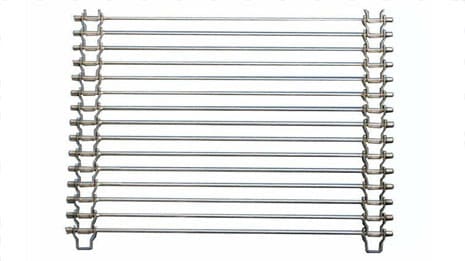

With the simplest structure, the
Ladder Conveyor Belts
are composed of cross
rods jointed by
S-shaped hooks,
chain links, and
U-shaped links. The belts with links
are secured by
welding a ring to the cross rod, ensuring the integrity and durability of the
ladder conveyor belts.
As trusted
Manufacturers,
Suppliers,
Provider, and
Exporters of
Ladder Conveyor Belt in
Mumbai,
Navi
Mumbai,
Thane,
and
India,
we deliver
high-quality conveyor solutions for reliable and efficient material handling.
Details:
- Material: steel, stainless steel 304, 316 or other materials as your request.
- Speed: from less than 1 m/min to 20 m/min. (High speed quick may affect the longevity of the conveyor belt)
Applications:
- Food processing: cooling, washing, drying, etc.
- Waste treatment facilities.
- Product sieving and sorting system.
- Blanching and product handling system.
Specification:
| Properties | Ladder belt with S-shaped hook | Ladder belt with chain links | Ladder belt with U-shaped links |
|---|---|---|---|
| Pitch | 1/2" to 4" | 1" to 3" | 3/4", 1" and 1-1/13" |
| Width | 20mm to 1500mm | 25mm to 2000mm | 80mm to 2000mm |
| Diameter of cross rod | 2mm to 8mm | 4mm to 20mm | 5mm |
| Application | Running in straight & curved applications | Only running in straight application | Running in straight & curved applications |

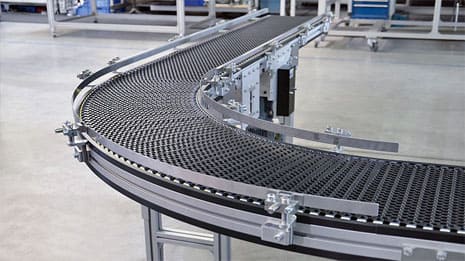

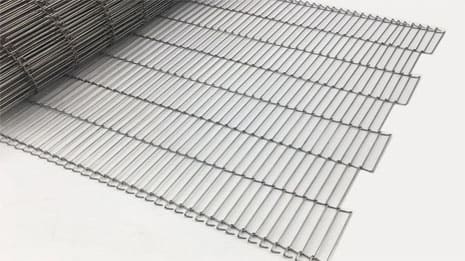

Ladder conveyor belts are available in straight types and curved types with a fixed inside radius as shown in the picture:
Our Ladder Conveyor Belt is engineered for strength, durability, and smooth material transport in continuous conveying systems. As leading Manufacturers , Suppliers , Providers , and Exporters in Mumbai , Navi Mumbai , Thane , and India , we provide conveyor belts designed for industrial, manufacturing, and processing applications, ensuring reliable performance, smooth operation, and long service life.
